PhishLens is a defensive Chrome extension and FastAPI backend for explainable phishing risk analysis in real time.

It combines local URL heuristics, privacy-preserving DOM signals, optional PhishTank threat intelligence, backend-side TLS certificate inspection with Certificate Transparency lookups, RDAP domain-age checks, and an optional machine learning model. The project is built as a practical cybersecurity portfolio project with clear safety boundaries.

PhishLens flagging a cloned PayPal login on a look-alike domain (paypal-verify-account.net) and explaining why, both in the popup and in the in-page warning. Both sites are local demo pages and the domain is not registered. The walkthrough below goes from the phishing email to the in-page warning:

Quick Start

# 1. Clone and set up the backend
git clone https://github.com/JuanCardesa/PhishLens.git && cd PhishLens
cp .env.example .env
python -m venv .venv && source .venv/bin/activate  # Windows: .venv\Scripts\activate
pip install -r backend/requirements-dev.txt

# 2. Start the backend and leave it running
uvicorn app.main:app --app-dir backend --reload

# 3. In a second terminal, from the repository root, build the extension
cd extension && npm install && npm run build

# 4. Load it in Chrome: chrome://extensions → Developer mode → Load unpacked → extension/dist

The extension also works without the backend; see Development Setup for Windows commands and Local Demo for pages that show each risk label. To rebuild the ML dataset and retrain the model: python ml/datasets/build_dataset.py && python ml/train_model.py.

Features

• Detection. URL heuristics (typosquatting via Levenshtein, homograph/IDN attacks via a hand-written punycode decoder and confusable map, a brand’s full domain hidden in subdomains) and privacy-preserving DOM signals (credential fields, external form actions, brand impersonation), scored into an explainable risk breakdown by URL, DOM, threat intelligence, TLS, domain age, and ML.
• Backend enrichment (FastAPI). /analyze, /report, /health; PhishTank threat intel, backend TLS + Certificate Transparency inspection, RDAP domain-age lookups — each with URL normalization, TTL caching, timeouts, and clean degradation when unavailable.
• Extension (MV3). A toolbar badge scored locally as each page loads, a React popup with a risk breakdown and feedback controls, an options page (backend URL, timeout, overlay), and a dismissible warning overlay for dangerous results. Works fully offline; the backend only enriches. Firefox support is experimental: the code and manifest are cross-browser, but it has not been click-tested in a real Firefox profile.
• ML. Training and evaluation pipeline on a real PhishTank + Tranco dataset, with SHAP per-prediction explanations and documented limitations (see ML methodology).
• Quality & safety. Unit tests plus a shared ext/backend scoring contract and a real-Chromium E2E smoke test; rate limiting, structured diagnostics with no sensitive payloads, host-only SQLite feedback, Docker, and CI (backend, extension, security, PR Guardian).

Screenshots

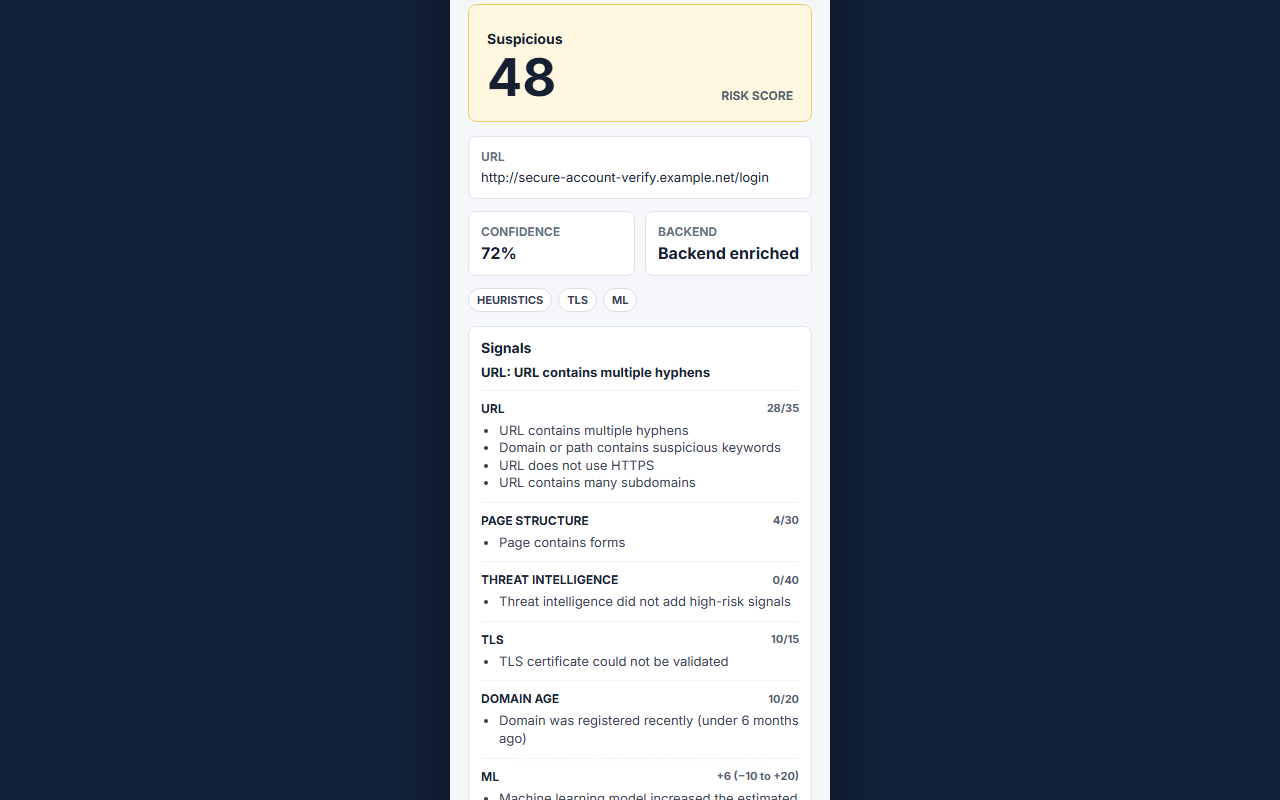

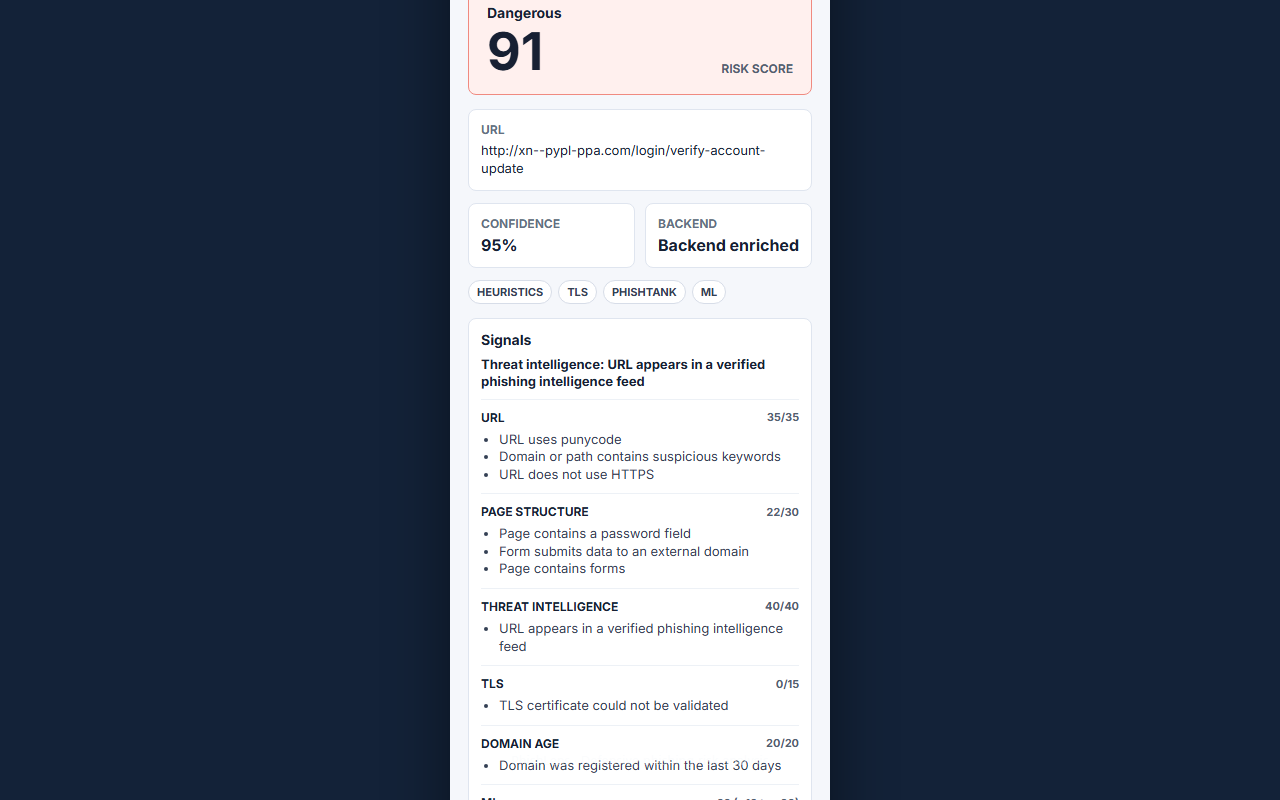

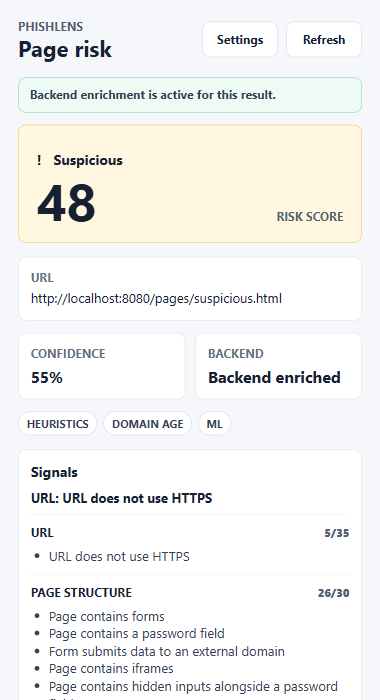

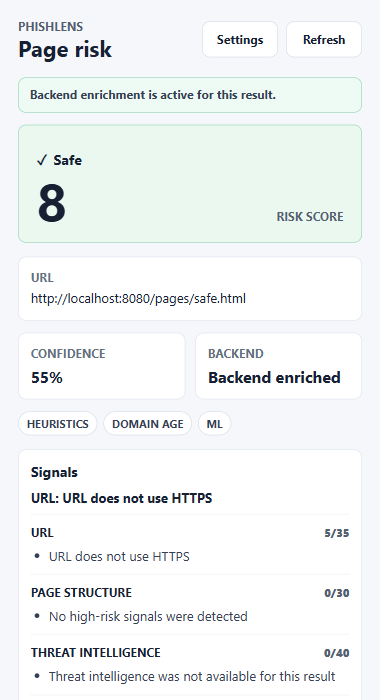

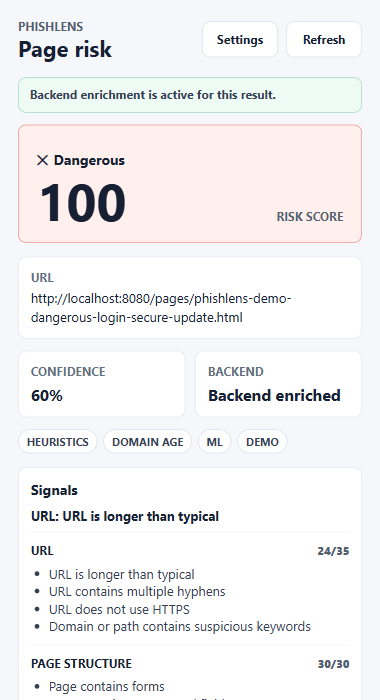

The popup on the local demo pages (demo/pages/), captured from the built extension with node extension/scripts/record-demo.mjs --docs.

Safe page	Suspicious page	Dangerous page	Backend unavailable

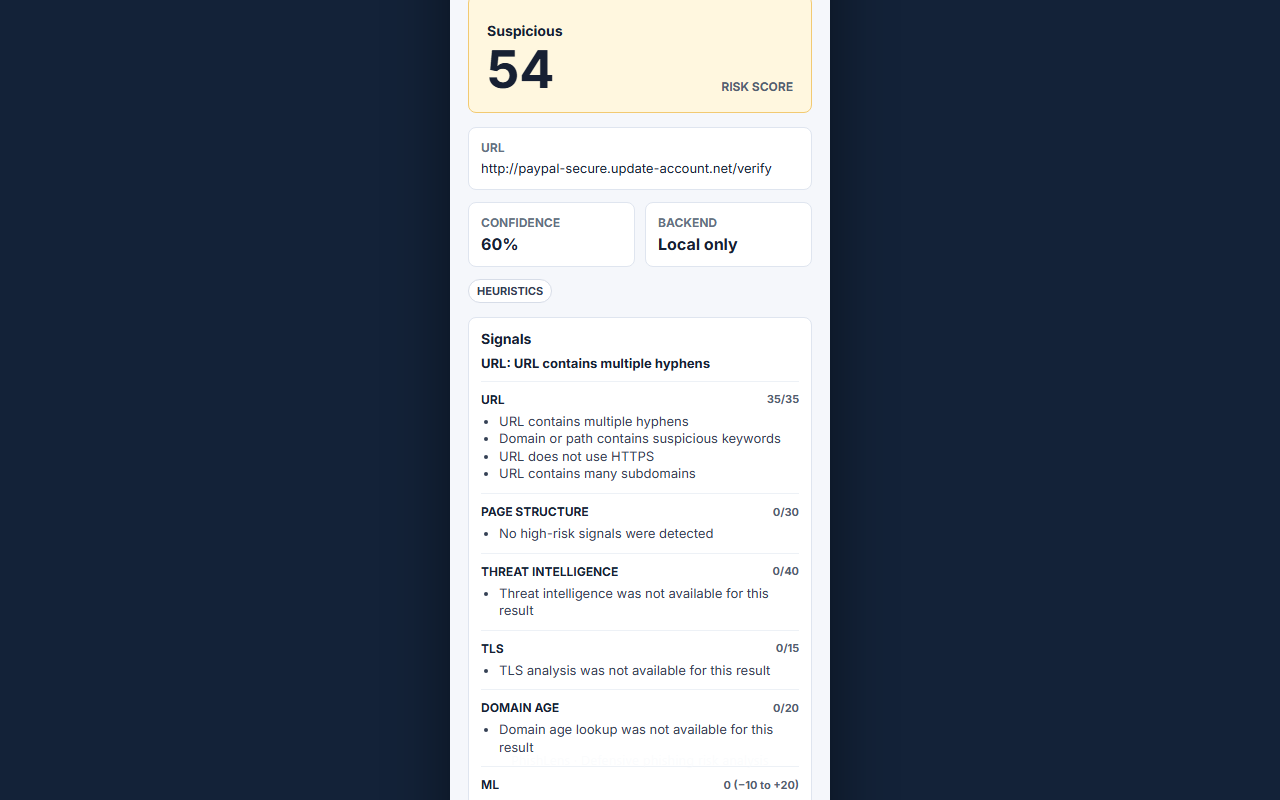

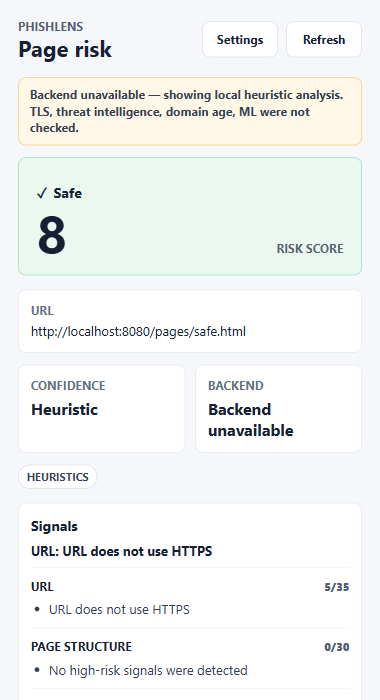

With the backend unreachable, the safe page keeps the same score (8). The local score is the base the backend adds to, so the two only differ by what the backend finds.

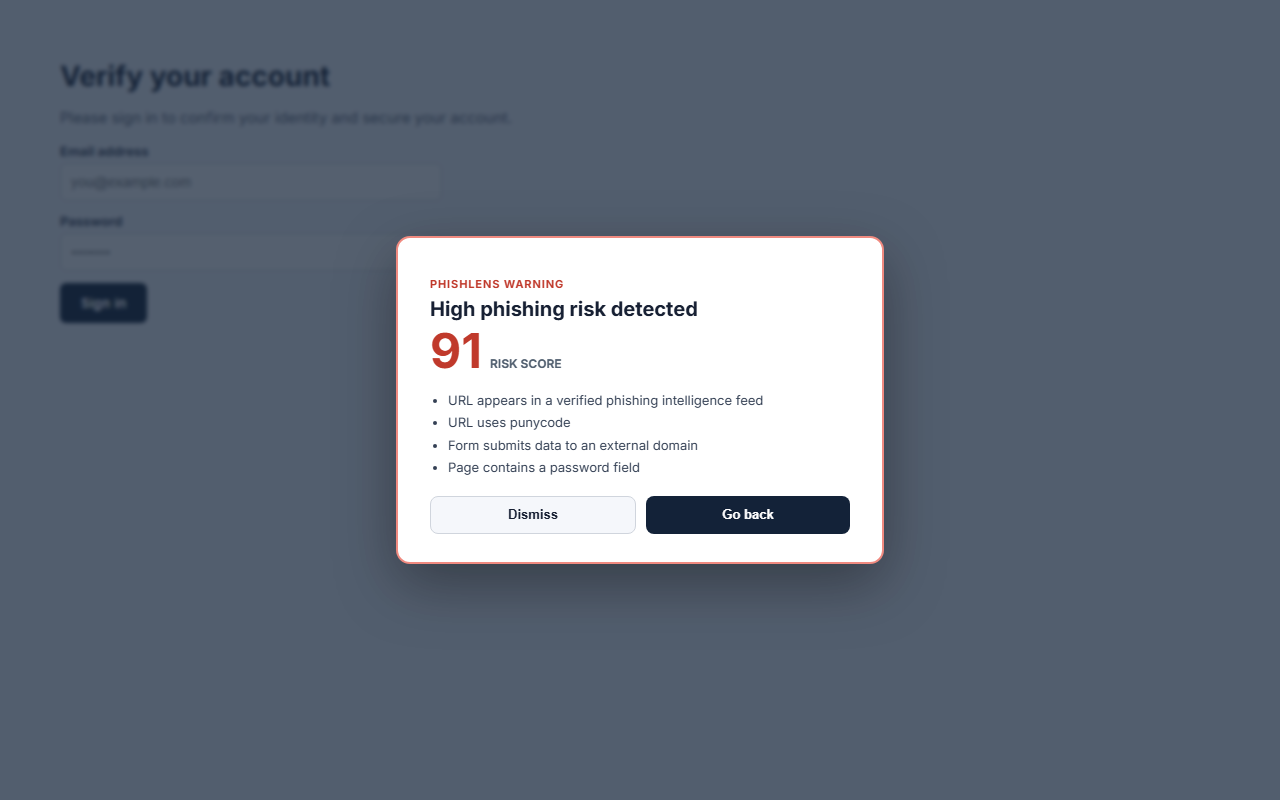

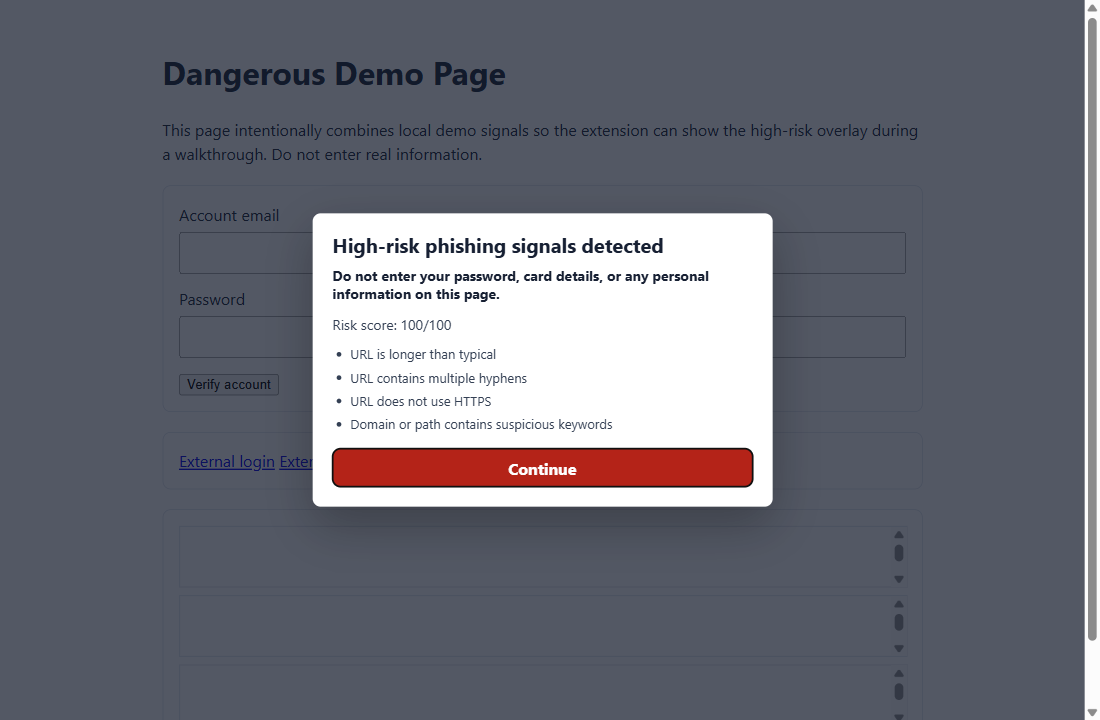

The warning overlay on the dangerous demo page. That page also matches the localhost-only demo threat source (see Local Demo):

Architecture

Chrome page
  -> content script extracts non-sensitive DOM signals
  -> service worker scores the page locally and sets the toolbar badge
  -> popup computes the local score (URL + DOM points scaled to 0-100) and shows it
  -> popup optionally calls FastAPI /analyze
  -> backend starts from that same score and adds threat intel, TLS + Certificate
     Transparency, domain age, and an ML adjustment (-5 to +12)
  -> popup shows score, label, confidence, risk breakdown, and feedback controls
     (confidence is a percentage only when the ML model contributed, "Heuristic" otherwise)
  -> dangerous results can display a dismissible page overlay
  -> development diagnostics expose counters only

The extension never sends full HTML, form values, passwords, or typed emails. The backend receives only the current URL and technical DOM features.

Stack

• Extension: TypeScript, React, Vite, Manifest V3, webextension-polyfill (for the experimental Firefox build).
• Backend: Python, FastAPI, Pydantic, httpx, scikit-learn, SHAP, pandas, joblib.
• Quality: pytest, ruff, mypy, Vitest, TypeScript checks, Playwright (real-Chromium E2E), GitHub Actions, Codecov.
• Runtime: Docker and Docker Compose.

Development Setup

Backend

Linux / macOS

python -m venv .venv
source .venv/bin/activate
pip install -r backend/requirements-dev.txt
uvicorn app.main:app --app-dir backend --reload

Windows (PowerShell)

python -m venv .venv
.\.venv\Scripts\python.exe -m pip install -r backend/requirements-dev.txt
.\.venv\Scripts\python.exe -m uvicorn app.main:app --app-dir backend --reload

Health check:

curl http://localhost:8000/health

Interactive API documentation is available at http://localhost:8000/docs while the backend is running.

Extension

cd extension
npm install
npm run build

Load extension/dist in Chrome:

1. Open chrome://extensions.
2. Enable Developer mode.
3. Select “Load unpacked”.
4. Choose the extension/dist folder.

The extension works locally without the backend. When the backend is available at http://localhost:8000, the popup enriches the local result with backend analysis.

Extension settings are available from the popup settings button or Chrome extension details page. The default backend is http://localhost:8000.

Tests

Backend (the same checks as Backend CI):

cd backend
pytest tests
ruff check app tests ../demo
mypy app

Extension (the same checks as Extension CI):

cd extension
npm run lint                        # tsc --noEmit
npm run test
npm run build
npx playwright install chromium     # first run only
npm run test:e2e                    # loads the built extension in real Chromium

Dependency audits (run by Security CI, not Extension CI):

cd extension && npm audit --audit-level=high
pip install pip-audit && pip-audit -r backend/requirements.txt

ML:

python ml/train_model.py
python ml/evaluate_model.py
python ml/evaluate_cv_metrics.py                 # the metrics in "ML Model Performance" below
python ml/evaluate_ml_adjustment.py --temporal   # evidence behind the ML score adjustment (downloads data)

Docker:

docker compose build
docker compose up backend

Review automation:

python scripts/ci/pr_guardian.py --all

Demo readiness:

python scripts/dev/check_demo.py

Configuration

Copy .env.example to .env for local overrides. No real keys are committed.

Variable	Default	Description
PHISHTANK_API_KEY	(empty)	Optional PhishTank application key. Omit to skip threat intel.
PHISHTANK_USER_AGENT	phishtank/phishlens-demo	User-Agent sent with PhishTank requests (required by their API).
PHISHLENS_ALLOWED_ORIGINS	http://localhost:5173	Comma-separated CORS origins. Add chrome-extension://* only for local dev.
PHISHLENS_CHROME_EXTENSION_IDS	(empty)	Comma-separated Chrome extension IDs for production CORS.
PHISHLENS_ENABLE_THREAT_INTEL	true	Enable/disable PhishTank lookups.
PHISHLENS_ENABLE_TLS_ANALYSIS	true	Enable/disable backend TLS certificate inspection.
PHISHLENS_ENABLE_CT_LOG_LOOKUP	true	Enable/disable Certificate Transparency log lookups (crt.sh) as an additional TLS risk signal.
PHISHLENS_ENABLE_DOMAIN_AGE_LOOKUP	true	Enable/disable RDAP domain-registration-age lookups.
PHISHLENS_EXTERNAL_TIMEOUT_SECONDS	4.0	Timeout for external backend enrichment calls such as PhishTank, RDAP, and crt.sh.
PHISHLENS_MODEL_PATH	app/models/phishlens_model.joblib	Path to a trained joblib model artifact.
PHISHLENS_BRAND_DOMAINS_PATH	app/data/brand_domains.json	Path to the curated brand-domain list used for typosquat/brand-impersonation detection.
PHISHLENS_ENABLE_DIAGNOSTICS	true	Expose aggregate counters at GET /diagnostics.
PHISHLENS_DIAGNOSTICS_TOKEN	(empty)	When set, GET /diagnostics requires X-Diagnostics-Token: <value>.
PHISHLENS_ENABLE_RATE_LIMITING	true	Enable in-memory sliding-window rate limits.
PHISHLENS_ANALYZE_RATE_LIMIT	60	Max /analyze requests per window per IP.
PHISHLENS_REPORT_RATE_LIMIT	20	Max /report requests per window per IP.
PHISHLENS_RATE_LIMIT_WINDOW_SECONDS	60	Rate-limit window in seconds.
PHISHLENS_BEHIND_PROXY	false	Trust X-Forwarded-For when behind nginx / Caddy / ALB.
PHISHLENS_FEEDBACK_DB_PATH	feedback.db	SQLite path for feedback metadata. Set to "" to disable.
PHISHLENS_ENABLE_DEMO_THREAT_SOURCE	false	Enable localhost-only dangerous demo signal.

Extension settings:

• Backend URL: defaults to http://localhost:8000.
• Timeout: defaults to 2500 ms, clamped between 1000 ms and 10000 ms.
• Danger overlay: enabled by default and only shown for dangerous results.

Ethical And Privacy Notice

PhishLens is defensive only. It must not collect credentials, typed emails, private form content, or full page HTML. It is a risk-assistance tool, not a phishing verdict authority. False positives and false negatives are expected, especially outside the limited dataset and signal coverage documented below.

Local Demo

Run the backend, demo pages, and extension locally, each in its own terminal:

# Terminal 1: backend with the localhost-only demo threat source
# (Linux / macOS: PHISHLENS_ENABLE_DEMO_THREAT_SOURCE=true uvicorn app.main:app --app-dir backend --reload)
$env:PHISHLENS_ENABLE_DEMO_THREAT_SOURCE="true"
.\.venv\Scripts\python.exe -m uvicorn app.main:app --app-dir backend --reload

# Terminal 2: demo pages on port 8080
python demo/serve_demo.py

# Terminal 3: build the extension
cd extension
npm run build

Load extension/dist in Chrome and visit:

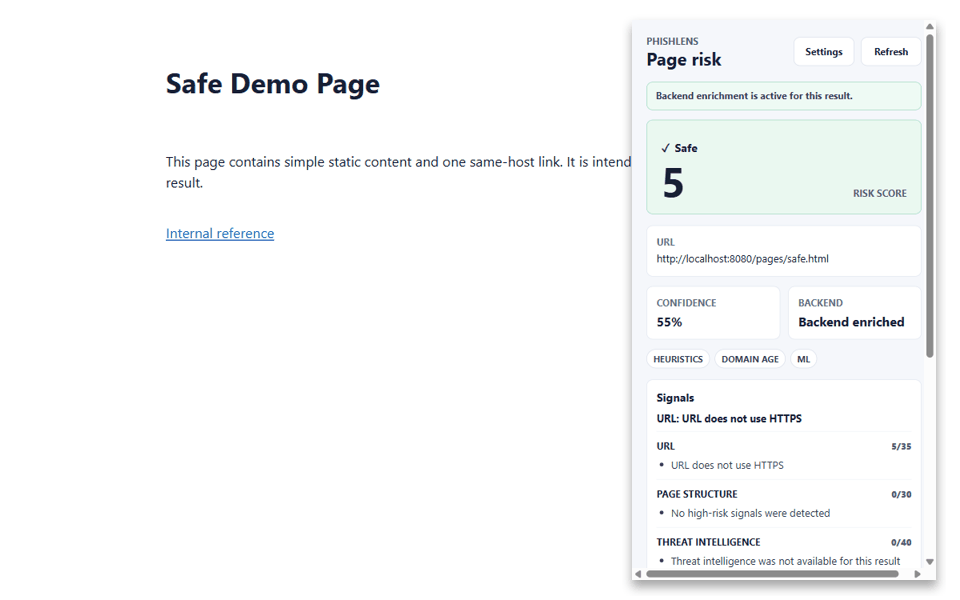

• http://localhost:8080/pages/safe.html (Safe)
• http://localhost:8080/pages/suspicious.html (Suspicious)
• http://localhost:8080/pages/phishlens-demo-dangerous-login-secure-update.html (Dangerous)

Each page shows its label with or without the backend, and the E2E test checks all three. PHISHLENS_ENABLE_DEMO_THREAT_SOURCE=true adds a threat-intelligence match to the dangerous page so that category is visible without a PhishTank key; it only matches localhost URLs containing phishlens-demo-dangerous. Use localhost rather than 127.0.0.1: the backend rejects private IP literals as an SSRF safeguard.

Package the extension:

cd extension
npm run package

The zip is written to extension/release/.

ML Model Performance

78.5% precision / 81.7% recall (5-fold stratified CV, N=1,200) for the shipped RandomForestClassifier on the committed PhishTank + Tranco dataset, with a 22% false-positive rate. This is a modest, URL-shape-only model. That is why it only nudges the rule-based score (−5 to +12) and never decides a verdict on its own.

These numbers used to read 99.0% precision / 0.8% false positives. That was a dataset artifact: 599 of the 600 legitimate URLs had no subdomain, so the model learned “has a subdomain” as phishing. Once legitimate URLs got realistic subdomains, and www. stopped counting as one, precision fell to its honest level (see Lessons Learned).

Metric	As-is (N=1,200)	Deduplicated (N=1,052)
Precision	0.785	0.786
Recall	0.817	0.823
F1	0.801	0.804
False-positive rate	0.223	0.214
ROC-AUC	0.886	0.889
Accuracy	0.797	0.804
Confusion matrix [[TN, FP], [FN, TP]]	[[466, 134], [110, 490]]	[[423, 115], [91, 423]]

Reproduce with python ml/evaluate_cv_metrics.py. Phishing is the positive class, and the dataset is balanced 50/50. The deduplicated column keeps one row per distinct feature vector: it is the closest check for train/test leakage, because the CSV stores no URLs.

• It does not hold up over time. Trained on phishing more than two years old and tested on phishing from the last 14 days, it catches only 42% of new phishing (0.67 accuracy). URL shape ages quickly; domain age and DOM signals in the training data are the next step.
• The score adjustment is sized to new phishing, not to the training set. On unseen campaigns a high probability is still strong evidence, about 11 times more likely on phishing, so it adds +12. A low probability is weak evidence there, so it subtracts only 5 (python ml/evaluate_ml_adjustment.py --temporal).
• It is a URL-only model. The dataset has no DOM features (they are always 0 in training), so the DOM values the extension sends at inference time are not something the model learned from.

docs/ml-methodology.md has the full methodology: class balance, leakage, the URL-length and subdomain dataset biases that were found and fixed, the temporal validation, and how the adjustment was sized.

Limitations

• TLS analysis runs from the backend and may differ from what the browser sees behind proxies or TLS inspection.
• PhishTank checks require a user-provided API key and are rate limited.
• Feedback storage is intentionally minimal: hostname, labels, note presence, request ID, and timestamp only. It is not a replacement for a reviewed training dataset.
• Diagnostics are development counters only and should not be treated as production telemetry.
• In-memory rate limiting is process-local and resets when the backend restarts.
• Every real login page scores some page-structure points: a form, a password field, and hidden inputs are what a credential page is, legitimate or not. The real PayPal sign-in page gets about 16 of 30 there (25 once scaled), which stays Safe on its own but leaves less room for other signals.
• The ML model is URL-shape only and trained on 1,200 rows. It adds +12 to 6.7% of legitimate URLs in cross-validation (2.3% on newer data), and on new phishing it subtracts 5 points about a third of the time (see ML Model Performance).
• The current build prioritizes explainability and safe defaults over coverage.

Lessons Learned

A few things found during a deliberate self-audit of this project, kept here instead of quietly fixed and forgotten, because how a bug was found and corrected is often more informative than the fact that the code is now clean:

• The content script and danger overlay were silently broken in real Chrome, while every automated check stayed green. Adding Firefox support introduced an ES import statement into two files that execute as classic, non-module scripts (MV3 content scripts and chrome.scripting.executeScript-injected files can’t be modules). tsc, vitest, and vite build all passed, because none of them load the bundle in an actual browser — Vitest mocks the module graph, and Vite’s build doesn’t check runtime module-format compatibility. Found by recording this README’s original demo GIF with a real Playwright + Chromium session instead of a screen recording tool, which surfaced “Could not establish connection” the moment the popup tried to collect DOM features. Fixed by splitting the build into two Rollup passes — ES modules for popup/options/the service worker, IIFE for the content script and overlay. The lesson: a green test suite proves the code you tested, not the environment you didn’t.
• A 95% ML accuracy number was hiding a trivial shortcut. The training dataset built legitimate URLs as bare domain roots (https://example.com/) while phishing URLs from PhishTank carry real paths, so url_length alone separated the two classes almost perfectly — the model was learning “has a path” instead of phishing patterns. Fixed by adding realistic paths to legitimate URLs; honest accuracy dropped to ~91% CV. Detailed in docs/ml-methodology.md.
• The same fix left a second shortcut next to the first. Legitimate URLs got realistic paths but kept bare hosts, so 599 of 600 had no subdomain and the model learned “has a subdomain” as phishing. It showed up as a real false positive while recording the demo: the real PayPal sign-in page scored Suspicious 36, and SHAP named the cause, “number of subdomains, number of dots”. The www. prefix alone swung the ML adjustment from −10 to +20. Fixed by not counting www as a subdomain and by giving legitimate URLs realistic hosts; the same PayPal page now scores Safe 20 (page structure 16/30, ML −5). Precision fell from 99.0% to 78.5%, and a temporal check that had looked reassuring (0.91) fell to 0.67. The near-perfect numbers had been measuring the dataset, not phishing. Detailed in docs/ml-methodology.md.
• The offline fallback’s “dangerous” label was effectively unreachable. It needed ~92% of its own maximum possible score because the threshold (60) was hand-picked against a smaller scale than the backend’s (70) without reconciling the two. Fixed by scaling the local score onto the backend’s 0-100 range before applying the same threshold.
• That fix only scaled one side, so the two scores disagreed. The backend kept adding URL and DOM points unscaled. The cloned PayPal login in the demo recording read Dangerous 95 in the popup and then 74 once the backend answered, and without the ML’s +12 the backend would have called it Suspicious 62: on the backend, URL and DOM evidence alone topped out at 65. Found while recording the demo video, not by any test, because each side’s tests only checked its own formula. Fixed by having the backend start from the same scaled score and add its own categories on top. The shared scoring contract now asserts that combined score on both sides.
• Backtesting the URL heuristic weights surfaced their own blind spot. Without typosquat/homograph signals (which need the raw domain — not stored in the dataset for privacy), the remaining numeric-only heuristics never reach the scoring cap on this dataset. That’s not a miscalibration; it confirms typosquat/homograph detection carries most of the URL category’s weight in practice. See docs/ml-methodology.md.
• A new external call (RDAP) silently exceeded the extension’s request timeout. Adding domain-age lookups didn’t itself cause this — profiling showed the real cost was a one-time, multi-second sklearn import triggered by lazily unpickling the ML model on the first request, which also blocked the event loop for concurrent requests. Fixed by warming up the model from a FastAPI lifespan handler at startup; first-request latency dropped from ~5.5s to ~1.4s.
• The heuristic-only “confidence” number is overconfident, not just unproven. A reliability diagram against the committed dataset showed every confidence bin with more than one row sitting below the perfectly-calibrated line, and the bin holding 96% of rows (confidence ≈ 0.90) was only ~52% accurate — barely better than guessing. Not “fixed” with a quick correction factor in this round, because calibrating against a dataset that can’t exercise typosquat/homograph/DOM/TLS/domain-age/threat-intel signals would just calibrate to this benchmark’s blind spots. Instead, the popup stopped presenting it as a probability: when the ML model did not contribute, it shows “Heuristic” (with a tooltip explaining why) rather than a percentage, and the copied report says “heuristic (not a calibrated probability)”. See docs/ml-methodology.md.

Roadmap

See docs/roadmap.md.

Review And Release Process

PhishLens uses deterministic review gates instead of relying on a single reviewer. See docs/review-methodology.md and docs/release-process.md.

Publication preparation lives in docs/chrome-web-store.md, with permission rationale in docs/permissions.md.
